  APPLICATIONS :

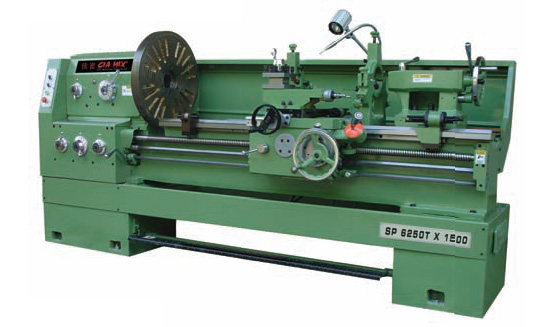

The machine which is a universal style and multi-purpose use engine lathe, can perform various kinds of working such as internal and external cylindrical surface, tapered surface, facing and grooving, threads of metric, withworth, module and diametral pitch system, as well as drilling, reaming, and thread tapping processing and etc. In the gap-bed lathe can machine large diameter disk of irregular shape workpieces. The machine has the performance reliablequality and easy to operate, and it is an ideal equipment for cutting processing.



FEATURE :
  • High rigidity spindle system, with absolute temperature rising no higher than 35 °C.
  • Reliable safety devices such as footbrake and emergency power-off switch are assembled. Adjustable overload protection device is also installed in the feed system.
  • Rapid feed system to improve efficiency. Wide range of feed and pitch are available without changing gears.
  • The bed way is made of high-quality cast-iron and induction-hardened. Hardness is around HRC 55.
  • Tailstock are equipped with double-locked mechanism, smooth and effortless movement is realized through the underneath elastic scroll devices.
