  APPLICATIONS :

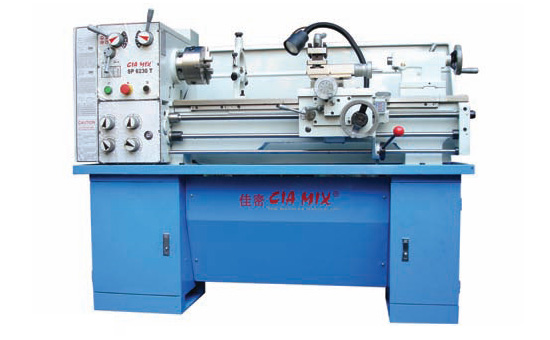

The machine which is a universal style and milti-purpose use engine lathe, can perform various kinds of working such as internal and external cylindrical surface, tapered surface, facing and grooving, threads of metric, withworth, module and diametral pitch system, as well as drilling, reaming, and thread tapping processing and etc. In the gap-bed lathe can machine large diameter disk of irregular shape workpieces. The machine has the performance of novel design, reliable quality and easy to operate, thus it is an ideal equipment for cutting processing.



FEATURE :
  • Lathe bed is made of high tensile cast iron in rigid structure. The bed way are hardened and ground.
  • The main spindle is equipped with 2 precision taper roller bearings (D7211, 7212).
  • Provide 69 kind metric or inch threads which can be cut by means of levels.
  • All gears, bearings and slide surfaces are designed with fully effective lubrication.
  • Being light in structure and small in energy wastage, 1½ HP motor gives more power suited heavy duty cutting.
