  APPLICATIONS :

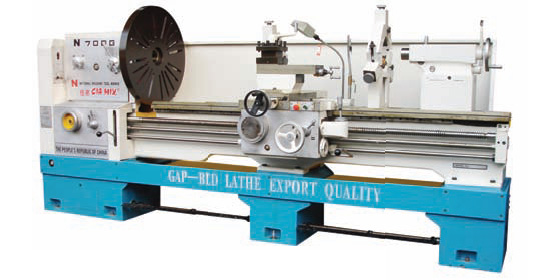

The machine which is a universal style and multi-purpose use engine lathe, can perform various kinds of working such as internal and external cylindrical surface, tapered surface, facing and grooving, threads of metric, withworth, module and diametral pitch system, as well as drilling, reaming, and thread tapping processing and etc. In the gap-bed lathe can machine large diameter disk of irregular shape workpieces. The machine has the performance reliable quality and easy to operate, and it is an ideal equipment for cutting processing.



FEATURE :
  • The guide-way adopted with ultrasonic quenching and obtained deer harden layer, higher surface hardness, to ensure the better precision and long life for use.
  • The spindle with a max speed of 10-1400 rpm, its bore diameter is 80mm which is supported on two bearing points.
  • The ground high speed transmission gears and low noise structure head stock keeps the noiseless than 83 dB (A).
  • There are longitudinal and cross rapid traverse in apron, easily operated by a single control lever.
