APPLICATIONS : |
|

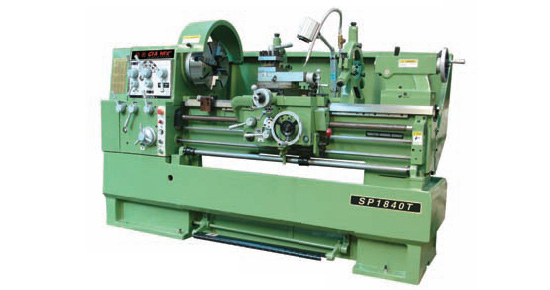

The machine which is a universal style and multi-purpose use
engine lathe, can perform various kinds of working such as internal and external cylindrical surface,
tapered surface, facing and grooving, threads of metric, withworth, module and diametral pitch system,
as well as drilling, reaming, and thread tapping processing and etc. In the gap-bed lathe can machine
large diameter disk of irregular shape workpieces. The machine has the performance reliable quality
and easy to operate, and it is an ideal equipment for cutting processing. |
| FEATURE : |
-
The headstock, gear-box, apron and bed-ways are made of high quality cast iron, and they are all cast with the resin sand foundry technology.
-
The base of the bed is cast into mono-block with a chip space. The structure ensures high rigidity of the whole machine and convenient chip disposal.
-
The bed-ways are induction hardened. Its hardness is up to HRC 50-58.
-
The spindle supported by 3-pointed high-precision bearings and all gears in headstock are precisely grinded, the spindle turning smoothly at high speed. The noise is lower than 78db at 2000rpm.
-
Foot brake, overload protection, chip guard, longitudinal automatic stop device, point-to-point control in spindle, manual lubrication pump.
-
Characterized by rigidity and machining accuracy, small volume, light weight, convenient chip disposal and good appearance.
|
 |
|
