APPLICATIONS : |
|
This machine is suitable to perform various procedures
such as plane surface, inclined surface, spiral surface,
slots, multi-spline and arc grooves. It also may be used
to accomplish vertical milling, drilling, boring and
grinding procedures. It is therefore to met maintenance
and manufacture in various enterprises, especially for
manufacturing tools, fixtures, moulds, dies, etc.

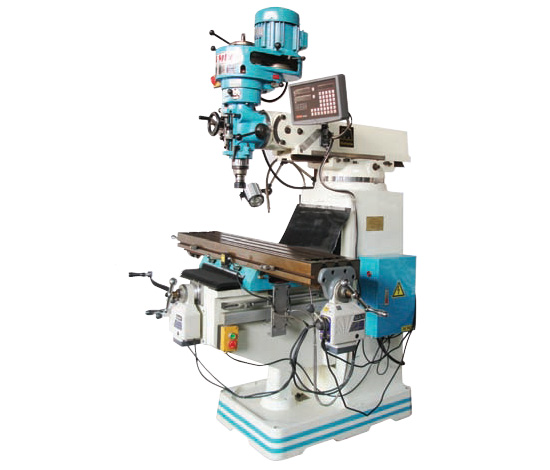

The construction on this machine is reliable and flexible
and a great versatility. The milling head mounted on
the front end of ram can revolve 90o longitudinally to
right or left in vertical plane and move to and for along
the dovetail guide of turret which also may be rotated
through 360o on top of the column. |
| FEATURE : |
-
Meehanite casting, maximum rigidity without deformation.
-
Spindle is made MOLYBDENUM CHROME, tempering and carburizing heat treated.
-
Spindle assembled precision bearing that, offers wide cutting range and high accuracy.
-
Unique Inversion type milling head, high, precision, easy operation and brake.
-
Three axes Nut on the screw are made of high class Phosphor Bronze for maximum wear resistant and life. X, Y Nut use adjustable type design, easy precision.
-
X, Y axis slide ways and adjusting gibs are laminated with wear-resistant sliding provides smooth.
-
Lubrication system delivers oil to all slide ways, gears, bearings, feed screw and bushing etc. for complete lubrication effect.
|
 |
|
